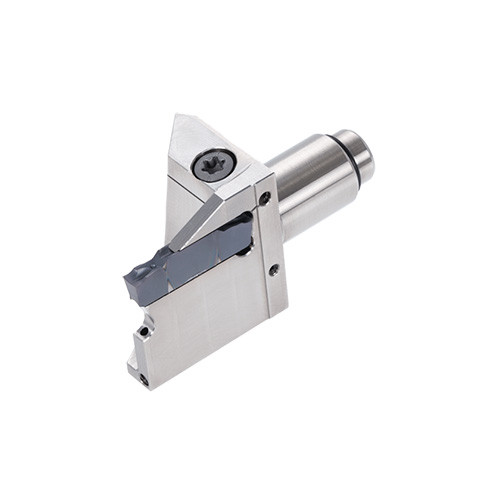

QC16-JCTEL2D32-CHP
Modular head for external grooving and parting, with high pressure coolant capability

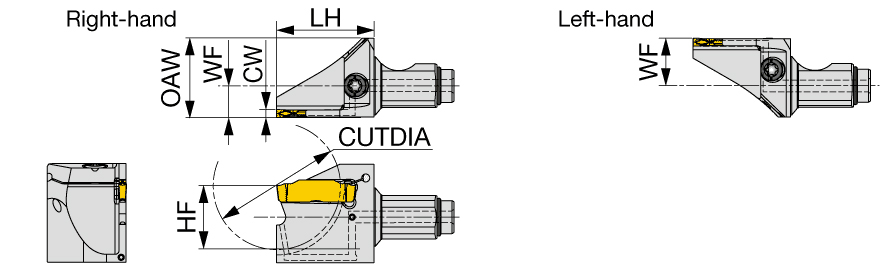

| Cutting Width Minimum (CWN) | 1.5 mm | Head Length (LH) | 24.5 mm |
| Cutting Width Maximum (CWX) | 2.49 mm | Cutting Direction (HAND) | Left Hand |
| Shank Height (H) | 16 mm | Application | | External grooving | Parting off | |
| Shank Width (B) | 16 mm | Body Material | Steel |
| Functional Width (WF) | 12 mm | Measurement Type | Metric |
| Functional Length (LF) | 32.4 mm | Unit | M |
Product Features
| Family Description | Modular head for external grooving and parting, with high pressure coolant capability | FamilyName | QC-JCTER/L-CHP |
| Remarks | Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
QC-JCTER/L-CHP
BrandName
Tungaloy
