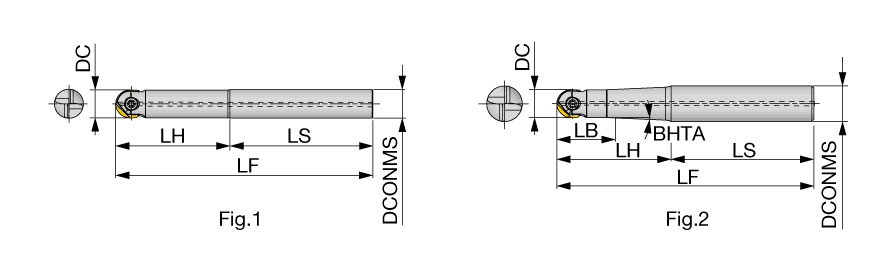

| Cutting Diameter (DC/DCX) | 1/2″ | Head Length (LH) | 6″ |
| Cutting Diameter (DC) | 1/2″ | Functional Length (LF) | 8-3/4″ |
| Cutting Item Count (CICT) | 1 | Tool Type | Ball nose endmills |
| Depth of Cut Maximum (APMX) | 1/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 8-3/4″ | Body Material | Carbide |
| Application | | Profile Milling | | Shank Length (LS) | 2-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Cutting Diameter Maximum (DCX) | 1/2″ |
| Master Insert Identification (MIID) | ZFBU050R00-MJ | Unit | I |
Product Features

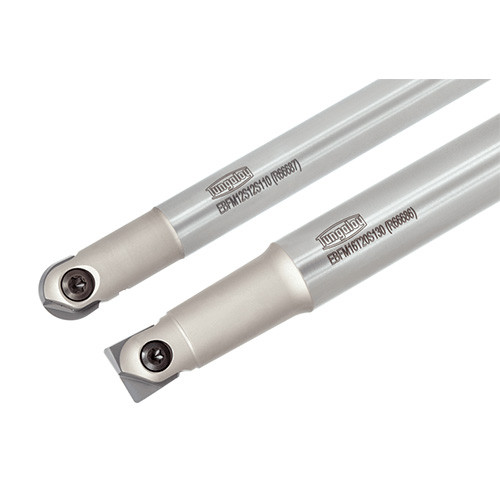

| Family Description | Indexable endmills for high precision finish. Each tool can carry various milling insert geometries. | FamilyName | EBFU |
| COO | SOUTH KOREA | BrandName | Tungaloy |
Shipping Info
Weight per item
1.0472
Name
Indexable End Mills
FamilyName
EBFU
BrandName
Tungaloy
