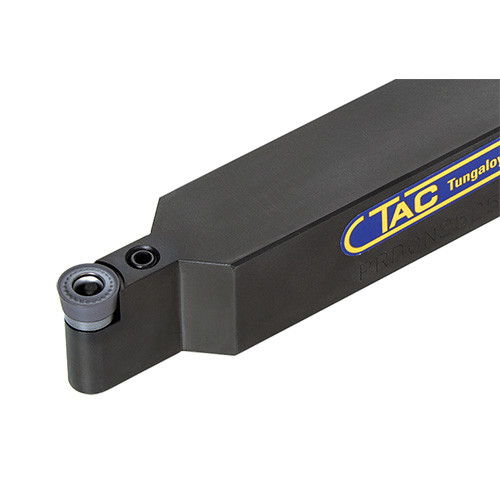

PRDCN2525M12
Lever lock type toolholder with 45deg approach angle, for positive round inserts

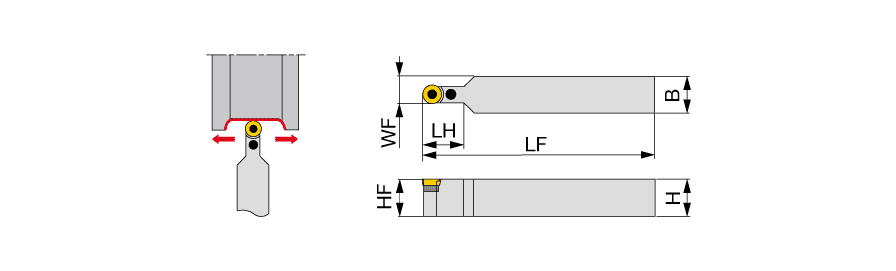

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | RCMM1204M0 |
| Shank Width (B) | 25 mm | Application | | For Round insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 24 mm | Measurement Type | Metric |
| Functional Width (WF) | 18.5 mm | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Lever lock type toolholder with 45deg approach angle, for positive round inserts | FamilyName | PRDCN |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.6700
Name
General Indexable Turning Tools
FamilyName
PRDCN
BrandName
Tungaloy
