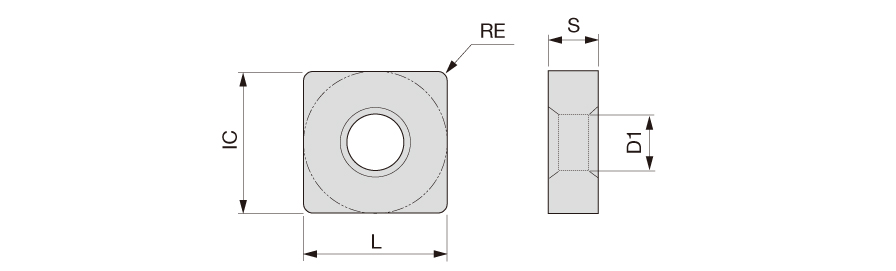

| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Fixing Hole Diameter (D1) | 8.8 mm |
| Application | | Inserts | | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 2.4 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 31.75 mm | Chip Breaker Type | Nega Size31-65 |
| Insert Thickness (S) | 9.52 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 31.75 mm | Body Material | Carbide |
| Cutting Edge Material | Carbide | Cutting Edge Effective Length (LE) | 29.35 mm |
| Coating | Ti-compound+Al2O3+TiN | Unit | M |
| Grade | T9225 |
Product Features

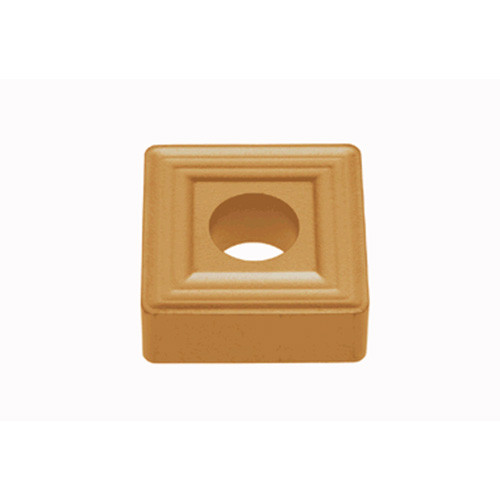

| Family Description | Negative relief ang., M class, square insert, for heavy cutting | FamilyName | SNMM-65 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
SNMM-65
BrandName
Tungaloy
